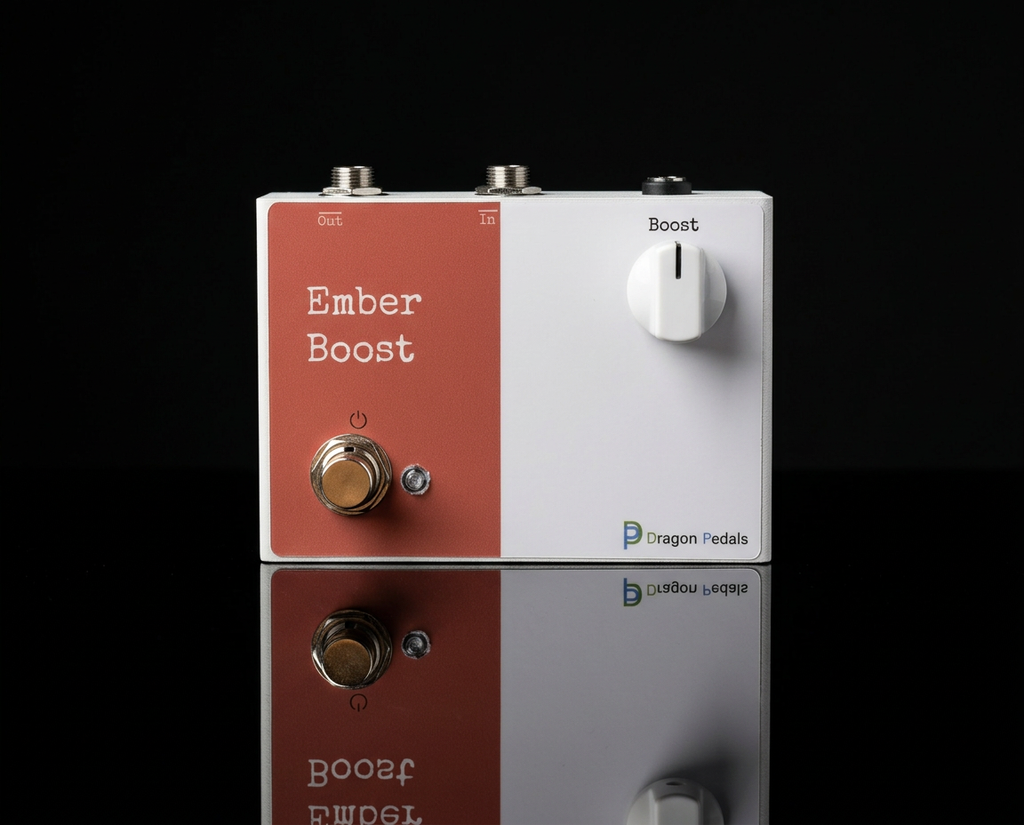

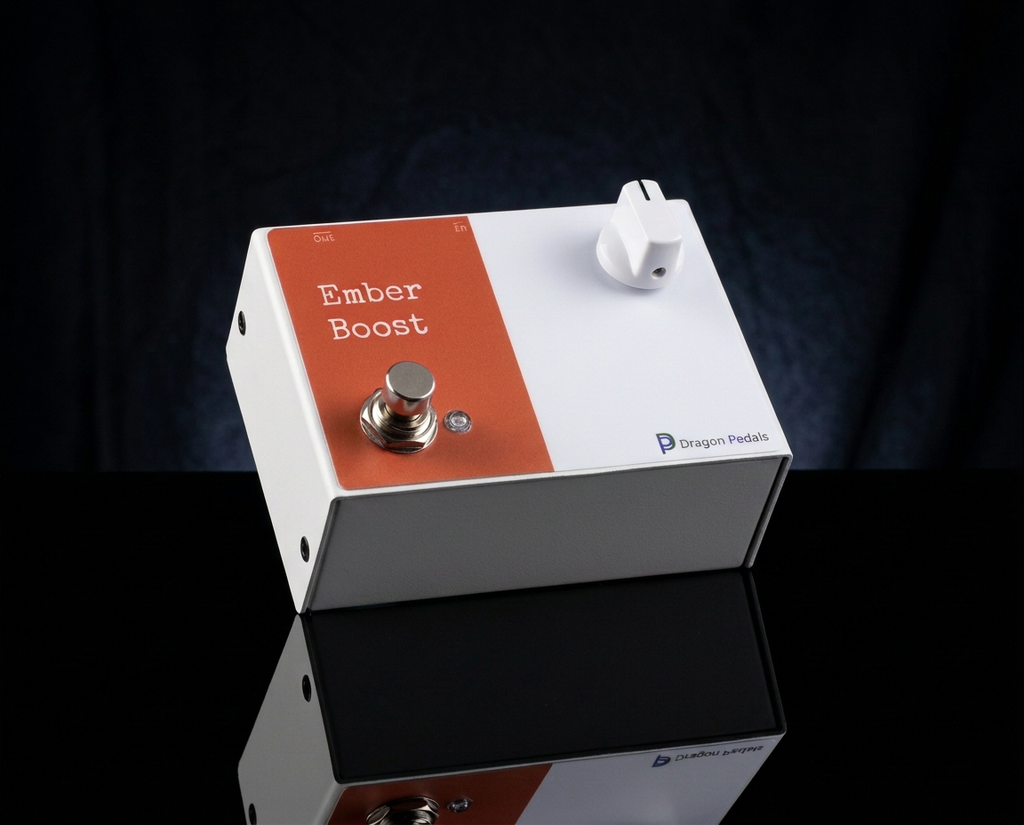

The Ember Boost, from Dragon Pedals, is an op-amp based clean boost designed to do one thing well: give your signal a push.

The Ember Boost uses an op-amp circuit to deliver up to +26dB of clean gain, pushing your amp or driving your pedals harder.  Alternatively, use it at the end of your chain to simply make things louder.  Because it's a true clean boost, your core tone stays intact: no added colouration, no compression artifacts, just more of what you already have.  However, there's a lot of gain here so your amp or other pedals could/will break up if pushed hard enough.
Details

Ember Boost Pedal

Boost from a clean Op-amp

Overview

The Ember Boost, from Dragon Pedals, is an op-amp based clean boost designed to do one thing well: give your signal a push.

The Ember Boost uses an op-amp circuit to deliver up to +26dB of clean gain, pushing your amp or driving your pedals harder.  Alternatively, use it at the end of your chain to simply make things louder.  Because it's a true clean boost, your core tone stays intact: no added colouration, no compression artifacts, just more of what you already have.  However, there's a lot of gain here so your amp or other pedals could/will break up if pushed hard enough.

Key Features

An op-amp Circuit the Cinder Boost provides up to an additional 26 dB of gain.

Simple Control Layout A single potentiometer gives you full full control:

  • Boost:  boost range +1dB to +26dB
  • Top-mounted jacks — keeps your pedalboard footprint smaller.
  • Flush sides — allows pedals to sit right next to each other.
  • Standard 9V DC centre-negative power — works with virtually every power supply on the market, right alongside the rest of your pedals

Use for

  • Pushing amps into breakup
  • Pushing drive pedals.
  • As a second channel for your single channel amp.

Specifications

Parameter Value
Circuit Type Op-amp Boost
Controls Boost
Input Impedance 7MΩ
Power Supply 9V DC, centre-negative
Current Draw ~10mA
Enclosure Aluminium alloy, powder-coated finish
Dimensions (W x D x H) 100 x 70 x 40mm
Jack Placement Top-mounted TS jacks

What's In The Box

  • Ember Boost Pedal
  • Documentation card
Shipping (IMPORTANT)

IMPORT TAXES & FEES

DUTY and TAXES PAID

We pay all tariff fees and border charges for the following countries:  Austria, Cyprus, France, Germany, Luxembourg, Malta, Netherlands, Norway, Portugal, Switzerland, Sweden, The Republic of Ireland and the United States of America.

This is a delivery to door service which means you shouldn't be involved in the delivery process other than being at the delivery address to sign for parcel. Note: some countries require the recipient to have ID available at the time of delivery. Please check with your local customs office for details.

Please note that such charges can be changed without notice by the importing country.  Dragon Pedals endeavours to ensure that all charges are covered but in some circumstances some additional charges may apply.  Please be aware that YOU will be responsible for such charges. At the time of writing this has only ever involved the USA.

IMPORT TAXES & FEES

All deliveries to destinations outside the UK, not mentioned above, may be subject to import charges, duties and taxes, which are levied by the importing country at the time the delivery arrives in your country.

All applicable duties, fees and any additional charges are outside our control and please be aware YOU will be responsible for these payments.

 Shipping Policy
Video Content

Disclosures

Keep DryKeep Dry • Power Supply Not IncludedPower Supply Not Included • Use only 9V DC Centre Negative Power SuppliesUse only 9V DC Centre Negative Power Supplies

Keep the guitar effects pedal away from moisture.

Power Supply Not Included

Power Supply Not Included

This pedal is shipped without a power supply.

Use only 9V DC Centre Negative Power Supplies

Use only 9V DC Centre Negative Power Supplies

This guitar effects pedal is designed for use with 9V DC centre negative power supplies.
