Cinder Boost
Cinder Boost
Details

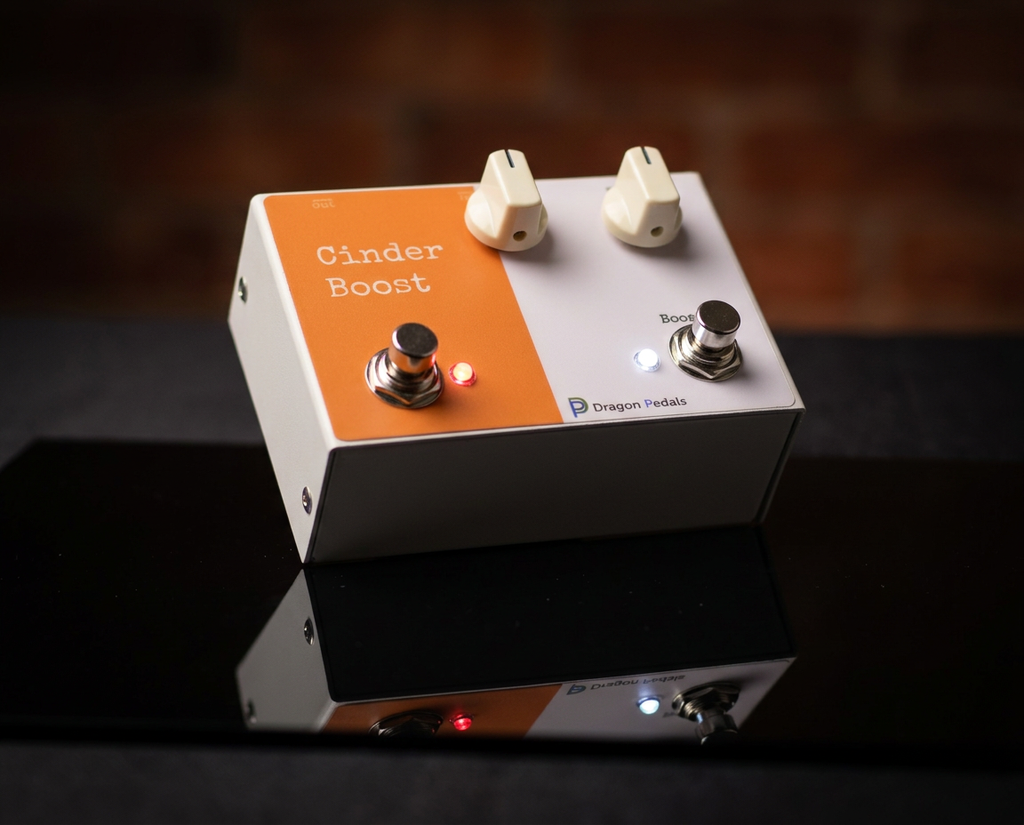

Cinder Boost Pedal
Boost with Transistor Warmth
Overview
Cinder Boost from Dragon Pedals, a handcrafted transistor-based boost pedal designed for players who want a boost that add something. Unlike super clean active boosts, Cinder delivers harmonic richness that lifts your tone.
Whether you're pushing an amp into overdrive or adding a lift to your clean headroom, Cinder Boost does the job perfectly with vintage-voiced warmth.
Key Features
A Transistor Circuit Built around discrete transistors, Cinder Boost imparts natural compression and harmonics that add weight and presence to your signal.
Simple Control Layout Two potentiometers give you full command over your sound:
- Volume: Clean boost range -6dB to +12dB
- Tone: Controls the high and upper mids
- Boost footswitch: increase boost range to +1.5dB to +15dB
-
Remote TRS connector: for boost - allows control via switcher or latching switch. Useful if your Cinder Boost is buried under a riser on your pedalboard.
- Top-mounted jacks — keeps your pedalboard footprint smaller.
- Flush sides — allows pedals to sit right next to each other.
- Standard 9V DC centre-negative power — works with virtually every power supply on the market, right alongside the rest of your pedals. Power adaptor not included.
Use for
- Pushing amps into breakup
- Pushing drive pedals.
- Use as an underdrive to cut volume.
Specifications
| Parameter | Value |
|---|---|
| Circuit Type | Discrete Transistor Boost |
| Controls | Volume, Tone |
| Input Impedance | 1MΩ |
| Power Supply | 9V DC, centre-negative |
| Current Draw | ~5mA |
| Enclosure | Aluminium alloy, powder-coated finish |
| Dimensions (W x D x H) | 100 x 70 x 40mm |
| Jack Placement | Top-mounted TS input and output jacks. Remote boost TRS jack. |
What's In The Box
- Cinder Boost Pedal
- Documentation card
